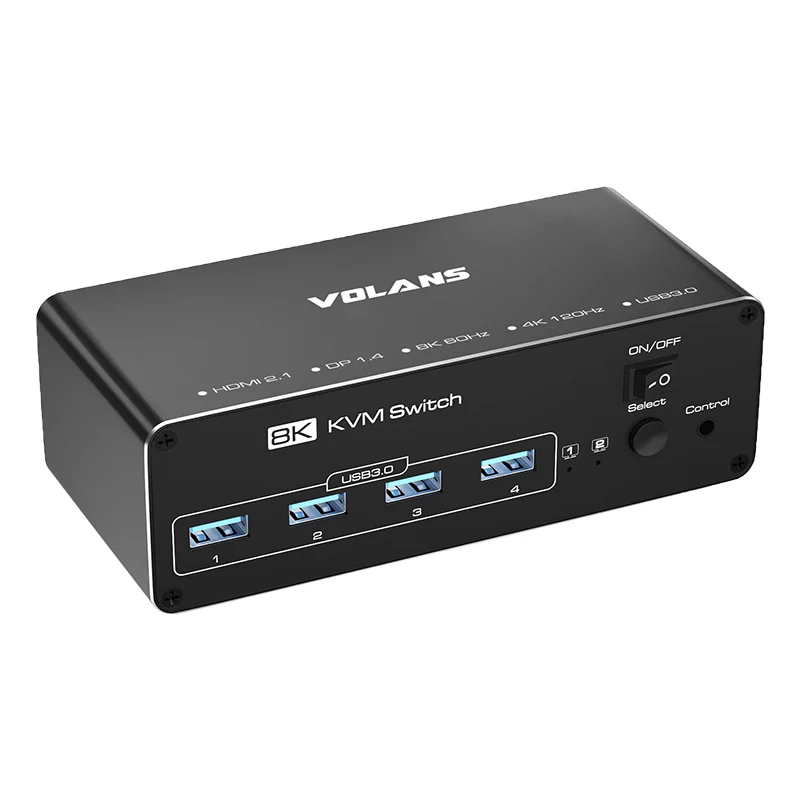

Volans HDMI and DP 8K Dual Monitor KVM Switch with 4 Port USB 3.0 Hub (VL-KVM9)

USB Upstream Ports

USB 3.0 AF x2 (Connect to PC1 and PC2)

USB Downstream Ports

USB 3.0 AF x4 (Connect USB peripherals)

Monitor Input

HDMI 2.1 x2, DP 1.4 x2 (Connect to PC1 and PC2)

Monitor Output

HDMI 2.1 x1, DP 1.4 x1 (Connect to displays)

Power Input

USB-C, DC 5V (power input only, no data transfer function)

USB Max Bandwidth

SuperSpeed 5Gbps

Video Max Bandwidth

up to 48Gbps

Max Video Resolution

8K@60Hz (7680×4320), 4K@120Hz (3840×2160), 2K@165Hz (2560×1440), 1080p@240Hz (1920×1080)

Max Cable Length for Input/Output

‰¤3m for 8K@60Hz, ‰¤5m for 4K@60Hz

Operating Temperature Range

€“5 °C to 45 °C

Operating Humidity Range

5 to 90%RH (no Condensation)

Dimension (L x W x H)

14.4 x 6.6 x 4.75cm

Weight

300g

Operating System Support

Windows, MacOS, Linux, Chrome OS
