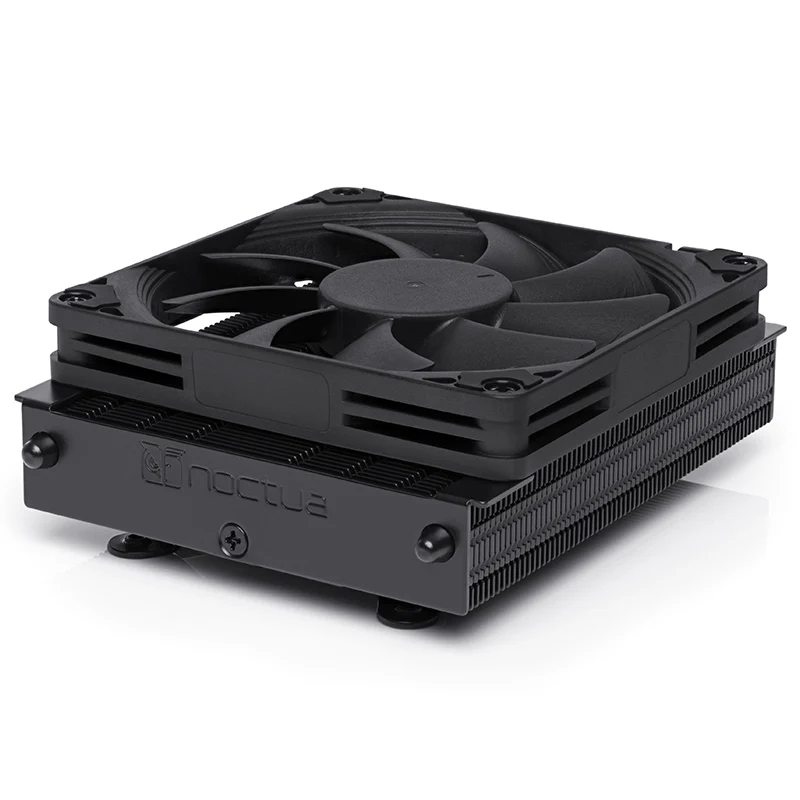

Noctua NH-L9a-AM4-CH-BK Low Profile AMD CPU Cooler - Chromax Black

FAN

Socket compatibility

AMD AM4

Height (without fan)

23 mm

Width (without fan)

114 mm

Depth (without fan)

92 mm

Weight (without fan)

390 g

Height (with fan)

37 mm

Width (with fan)

114 mm

Depth (with fan)

92 mm

Weight (with fan)

465 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

61

Max. TDP

See NSPR

Fan compatibility

92x92x14mm, 92x92x25mm

Scope of delivery

Black NH-L9a-AM4 heatsink

NF-A9x14 HS-PWM chromax.black premium fan

NA-RC7 Low-Noise Adaptor (L.N.A.)

NT-H1 high-grade thermal compound

Black SecuFirm2â„¢ AM4 mounting kit

Black Screws for 92x92x25mm fans

Noctua Metal Case-Badge

COOLER

Model Noctua

NF-A9x14 HS-PWM chromax.black

Bearing

SSO2

Max. rotational speed (+/- 10%)

2500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1800 RPM

Min. rotational speed @ 20% PWM   (+/-20%)

600 RPM

Max. airflow

57,5 m³/h

Max. airflow with L.N.A.

40,8 m³/h

Max. acoustical noise

23,6 dB(A)

Max. acoustical noise with L.N.A.

14,8 dB(A)

Input power (max.)

2,52 W

Voltage range

12 V

MTTF

> 150.000 h
