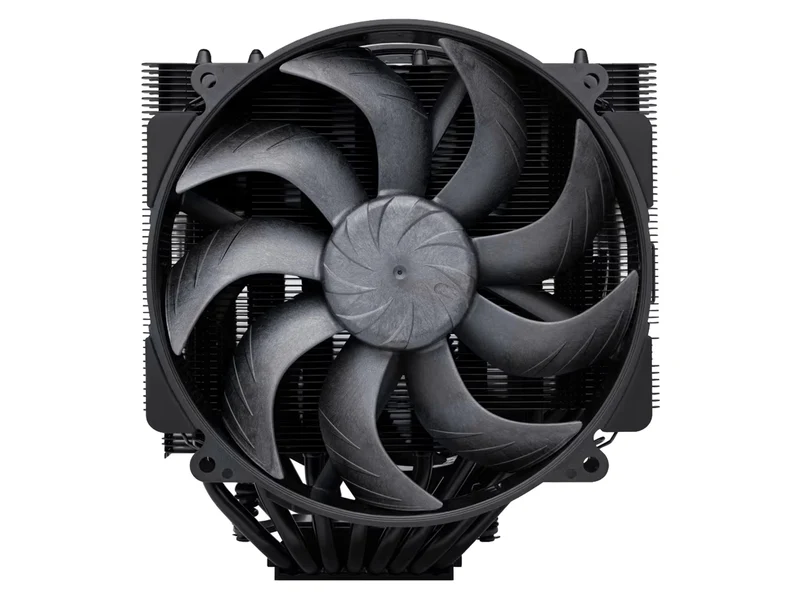

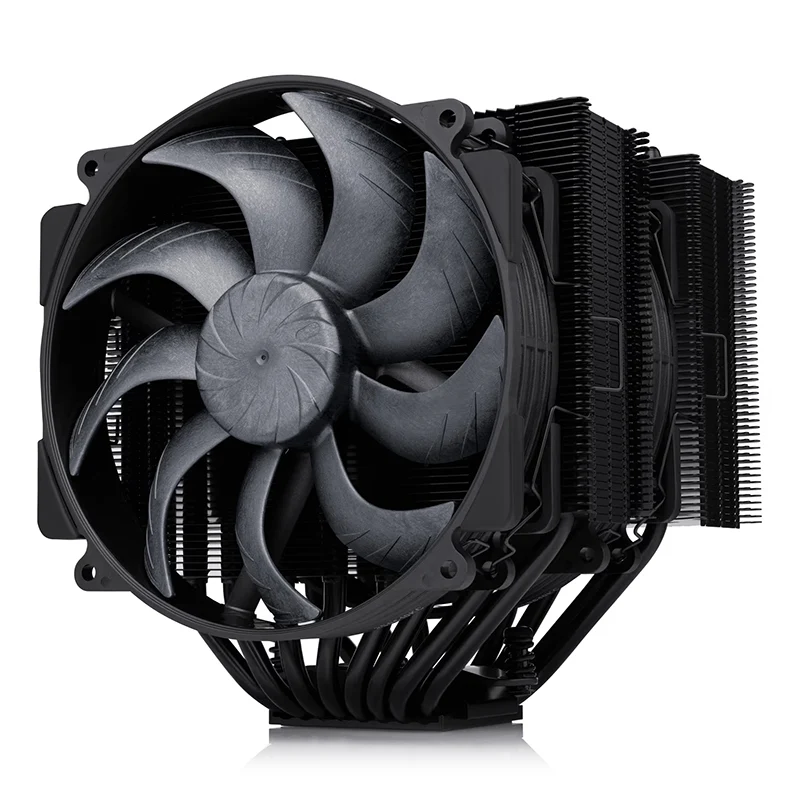

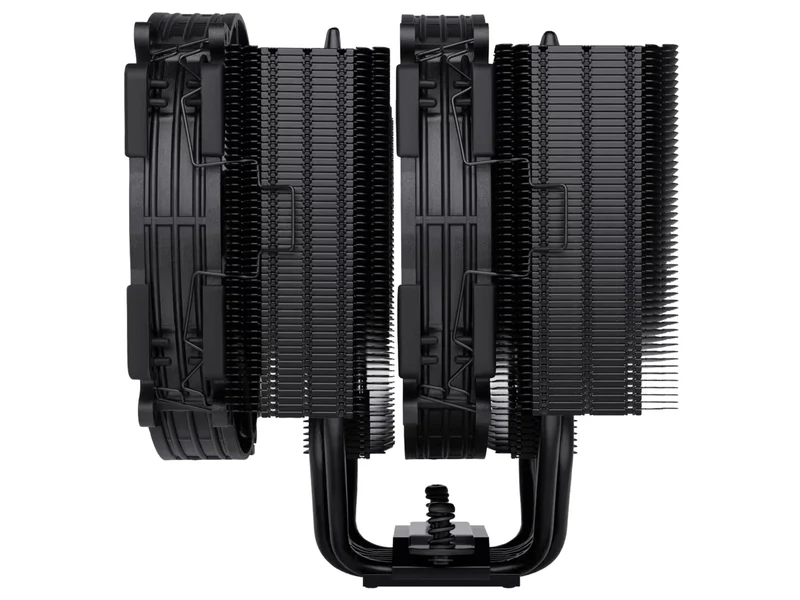

Noctua NH-D15 G2 Next Gen Dual Tower CPU Cooler - Chromax.Black (NH-D15 G2-CH-BK)

Socket compatibility

AM5, AM4, LGA1700, LGA1851, LGA1954, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200

Total height

168 mm

Fan configuration

2x 140x140x25mm (round)

NSPR

228

Colour

Black

Fan Size (Form factor)

140 x 140 x 25 mm (round)

Speed range

0 €“ 1500 rpm

Airflow (max.)

155.6 m ³/h (91.58 CFM)

Acoustical noise (max.)

24.8 dB(A)

Static pressure (max.)

2.56 mm H ‚‚O

Rated voltage

12 V

Connector

4-pin

Colour

Black

Height with fan(s)

168 mm

Height without fan(s)

168 mm

Width with fan(s)

150 mm

Width without fan(s)

150 mm

Depth with fan(s)

152 mm

Depth without fan(s)

127 mm

Weight with fan(s)

1525 g

Weight without fan(s)

1180 g

Material: heatsink base

Copper, nickel plated

Material: heatsink fins

Aluminium, nickel plated

Material: heatpipes

Copper, nickel plated

Interface heatpipes/heatsink fins

Soldered

Base convexity

Standard

Colour

Black

Number of heatpipes

8

Heatpipe diameter

6 mm

Fin count

58

Mounting hole pitch

78 mm

Rack unit compatibility

5U

Base size

44.6 x 51.6 mm

NSPR

228
