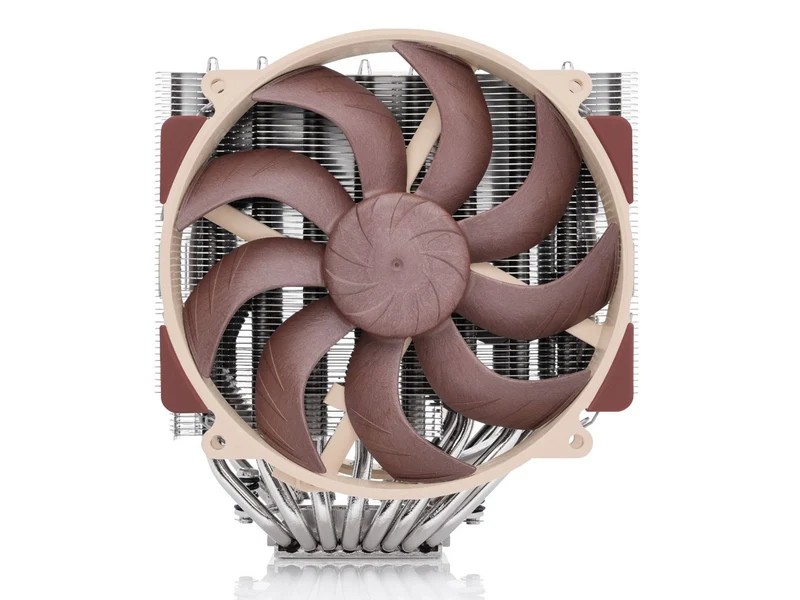

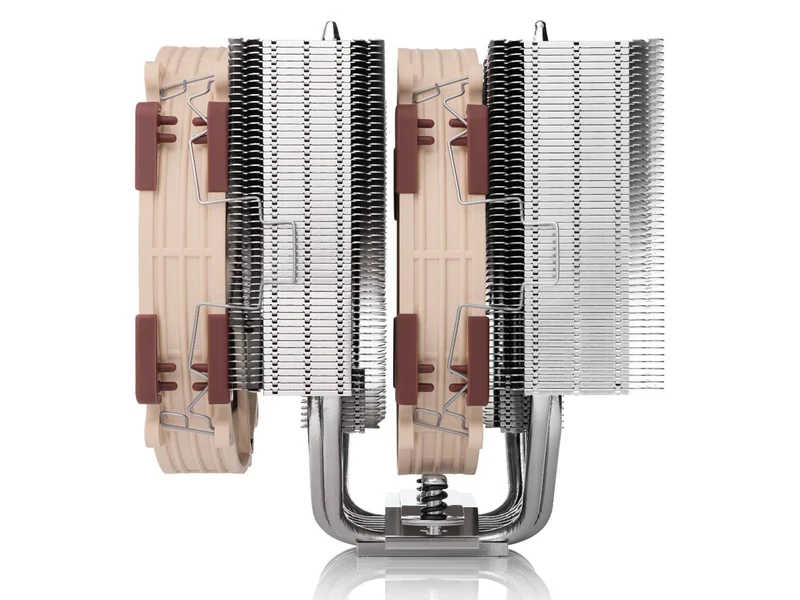

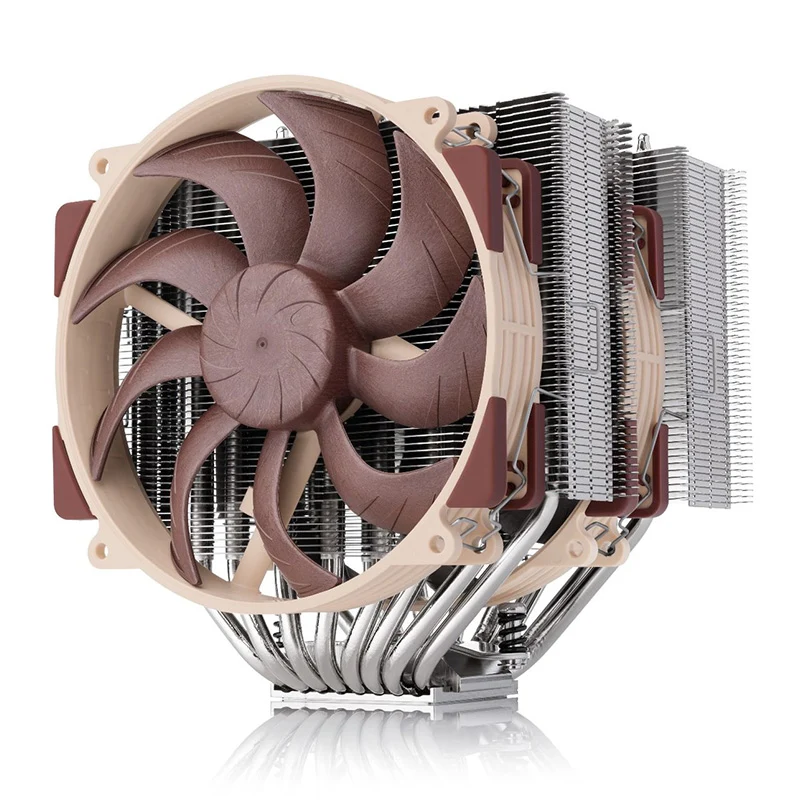

Noctua NH-D15 G2 HBC CPU Cooler

COOLER SPECIFICATION

Socket compatibility

AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150

Height (without fan)

168 mm

Width (without fan)

150 mm

Depth (without fan)

127 mm

Weight (without fan)

1180 g

Height (with fan)

168 mm

Width (with fan)

150 mm

Depth (with fan)

152 mm

Weight (with fan)

1525 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

228

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 (optional NA-SFC12 fan clips required)

Scope of delivery

2x NF-A14x25r G2 PWM premium fan

2x NA-RC16 Low-Noise Adaptor (L.N.A.)

NA-YC1 4-pin PWM splitter cable

NT-H2 high-grade thermal compound

NA-TPG1 thermal paste guard for AM5

NA-CW1 cleaning wipe

SecuFirm2+ „¢ multi-socket mounting system

NM-SD1 Torx ® T20 screwdriver

Noctua metal case-badge

FAN SPECIFICATION

Model

2x NF-A14x25r G2 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1250 RPM

Max. airflow

155.6 m ³/h

Max. airflow with L.N.A.

127.1 m ³/h

Max. acoustical noise

24.8 dB(A)

Max. acoustical noise with L.N.A.

19.7 dB(A)

Blade geometry

Progressive-Bend impeller

Acoustical noise

24.8 dB(A)

Input power (max.)

2.28 W

Voltage range

12 V

MTTF

> 150.000 h
