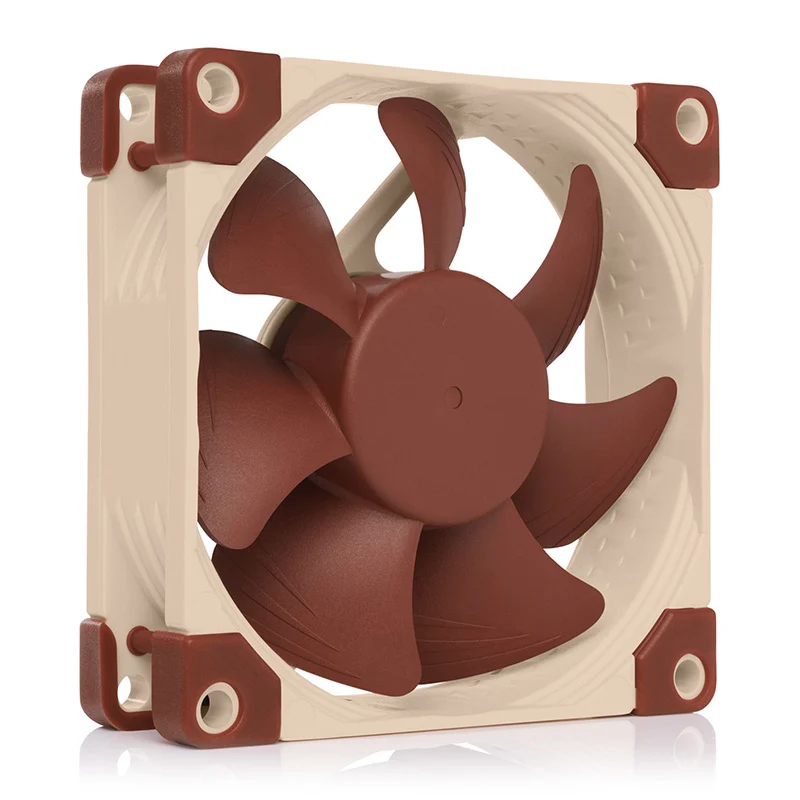

Noctua 80mm 5V PWM Fan (NF-A8-5V-PWM)

Size

80x80x25 mm

Mounting hole spacing

71,5x71,5 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

2200 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Airflow

55,5 m ³/h

Acoustical noise

17,7 dB(A)

Static pressure

2,37 mm H ‚‚O

Input power (typical)

0,74 W

Input power (max.)

0,75 W

Input current (typical)

0,15 A

Max. input current

0,15 A

Operating voltage

5 V

MTTF

> 150.000 h

Scope of delivery

30cm extension cable

NA-AV1 anti-vibration mounts

USB power adaptor cable

OmniJoin adaptor set

Fan screws

Notes

Being a 5V fan, the NF-A8 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
