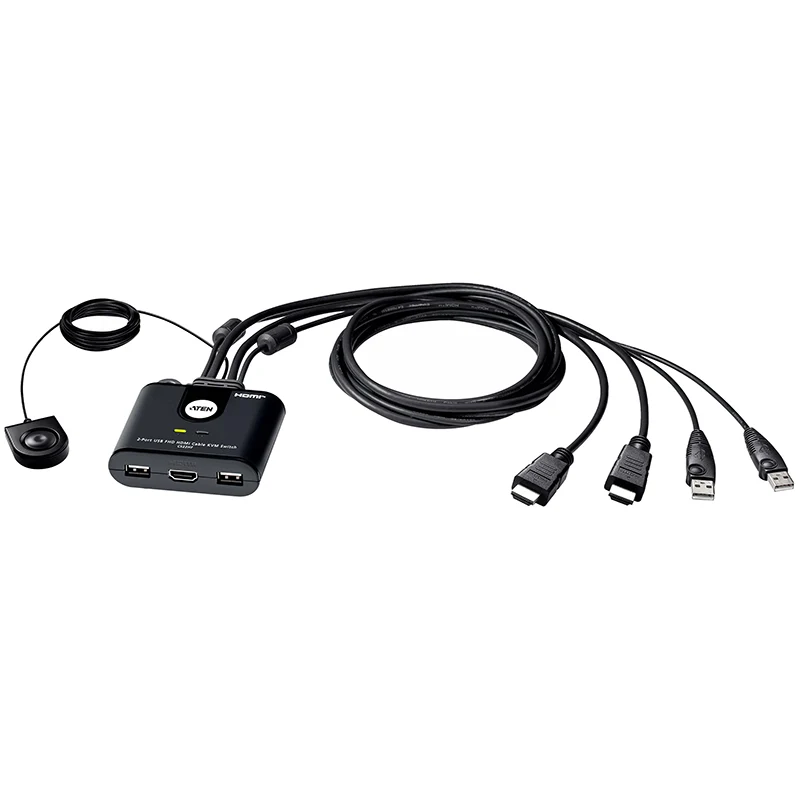

Aten 2-Port USB Full HD HDMI Cable KVM Switch (CS22HF-AT)

CONNECTORS

Console Ports

1 x HDMI Female
2 x USB Type A Female

KVM Ports

2 x HDMI Male
2 x USB Type A Male

LEDS

Selected

2 (Green)

CABLE LENGTH

Computer

2 x 1.2 m

Remote Port Selector

1.8 m

Video

1920 x 1080 @ 60 Hz; 1920 X 1200 @ 60Hz

Power Consumption

DC5V:1.518W:11BTU/h

Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0-50 °C

Storage Temperature

-20-60 °C

Humidity

0-80% RH, Non-condensing

PHYSICAL PROPERTIES

Housing

Plastic

Weight

0.26 kg ( 0.57 lb )

Dimensions (L x W x H)

8.24 x 6.65 x 2.52 cm
(3.24 x 2.62 x 0.99 in.)

Note: For some of products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
